Build your universal railing
Draw the railing as it will stand, choose the mounting and options – sections, brackets, couplings and bolts are calculated automatically and the whole parts list goes into the basket.
Length
Straight run. Enter the length or use the slider – we fill it with standard sections to the nearest lower length.
Shape and length
Start from a shape or build run by run. The railing is built from standard sections in 100 mm steps – contact us if you need it to the millimetre.
Mounting
Choose by surface. The number of fixings is calculated from the drawing – single at the ends, double where sections meet.
Corners and ends
Ends
Start (A)
End (B)
Against a wall: you cut the post and the bend (100 mm) off the section nearest the wall yourself – the rails then plug into the wall brackets UV4200 (top rail) and UV2700 (under-rail), included in the parts list. The sections are chosen so the railing reaches exactly to the wall.
Options
A kick plate stops goods and feet from slipping under the railing. A gate gives passage without breaking the protection.
Lock
Hinged on
Position ·

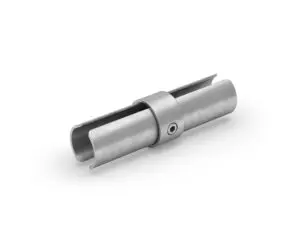

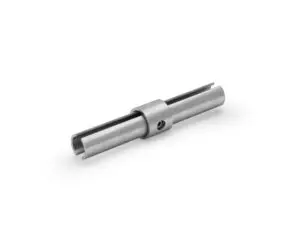

If you need an exact length you can cut a section on site and join it with a splice kit. One kit per cut section – it contains splices for both the thick tube (42 mm, SK4200) and the middle rail (27 mm, SK2700).
Splice kit 42 + 27 mmSK4200 + SK2700 · £71 /kit
Finish
Hot-dip galvanised to SS-EN ISO 1461 is in stock. Painted railings are made to order – choose a colour and we quote the whole drawing.
Your railing
NG-URS-4000-GOLV-VFZ
Parts list – calculated automaticallyShow all partsHide
excl. VAT
–
In stock · 6-8 days
Invoice, 30 days
CE-marked
Free advice
How it works
- 01
Draw the railing
Enter the dimensions or build the shape run by run. Corners, angles and the gate show directly in 3D.
- 02
We count the parts
Sections in standard lengths, brackets, couplings, bolts and washers are calculated automatically and shown in the parts list.
- 03
Order or request a quotation
Add the whole parts list to the basket and pay by invoice, or send the drawing for a quotation with a project price.
- 04
Install it yourself
The drawing and the installation instructions come with the order.
Description

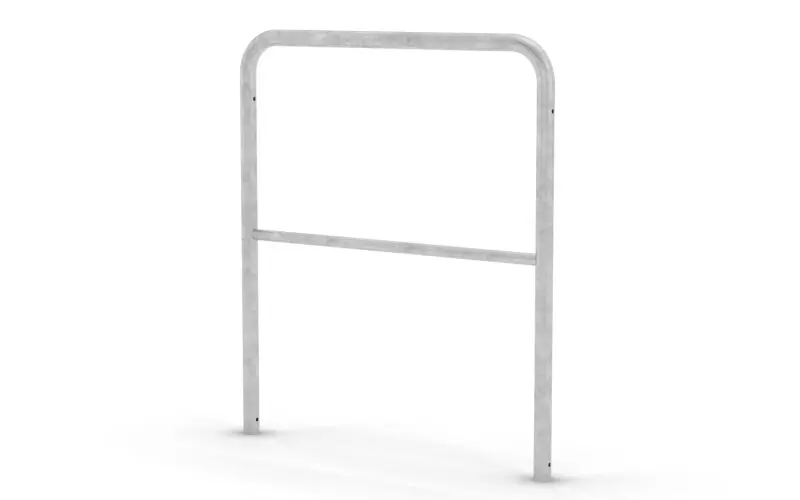

Universal railing Standard is a modular safety railing for industry, warehouses, garages and car parks. The railing is built from railing sections in six standard lengths (400–2,000 mm), 1,100 mm high with posts and top rail in Ø42 mm and a lower rail in Ø28 mm.
In the configurator you draw the railing as it will stand, choose the mounting for your surface and add corners, a kick plate and a gate. The parts list with sections, brackets, couplings and bolts is calculated automatically and comes with the order together with the drawing.
How it works
- Enter the dimensions or build the shape run by run. Corners, angles and the gate show directly in 3D.
- Sections in standard lengths, brackets, couplings, bolts and washers are calculated automatically and shown in the parts list.
- Add the whole parts list to the basket and pay by invoice, or send the drawing for a quotation with a project price.
- The drawing and the installation instructions come with the order.
Frequently asked questions
Can I get an exact length?
The railing is built from standard sections (400/500/700/1000/1500/2000 mm), so every length in 100 mm steps from 800 mm can be built exactly. For millimetre adjustment you cut a section on site and join it with a splice kit (SK4200 for the thick tube and SK2700 for the middle rail) – choose the number of kits under Options in advanced mode and they are added to the parts list.
Which mounting should I choose?
Floor brackets on existing concrete, side brackets against a wall or edge, ground anchors in gravel and soil, cast-in for new concrete, L-wall brackets on a retaining wall and concrete footings when the railing should stand free or be movable.
Are bolts for the surface included?
Bolts, nuts and lock washers for the brackets are included in the parts list. Expansion bolts or chemical anchors for concrete and asphalt are chosen among the accessories below the configurator.
Can I change the drawing after ordering?
Yes, contact us with the order number before the order has been packed. Painted railings are made to order and cannot be changed once production has started.
Technical data
- Length
- 400 mm, 500 mm, 700 mm, 1000 mm, 1500 mm, 2000 mm
- Height
- 1100 mm
- Finish
- Hot-Dip Galvanized / Galvanized
- Upright/top rail Ø
- 42 mm
- Bottom rail Ø
- 28 mm
- Item no.
- NG-URS
Documents and certificates11 files
Railing maintenancePDF · 223 KB
WarrantyPDF · 206 KB
AccessoriesPDF · 448 KB
Kick plate - AssemblyPDF · 220 KB
Universal gate with stop - AssemblyPDF · 408 KB
Floor mount - AssemblyPDF · 271 KB
Corner railing floor mount - AssemblyPDF · 290 KB
Side mount - AssemblyPDF · 261 KB
Ground mount - AssemblyPDF · 236 KB
Corner railing side mount - AssemblyPDF · 282 KB
L-support - AssemblyPDF · 246 KB
Delivery, payment and returns
- Delivery time
- 6-8 business days
- Shipping
- Calculated at checkout from weight, volume and delivery address. Heavy and long products are shipped on a pallet.
- Delivery
- To the property line or gate with tracked shipping. Unloading is not included – let us know if a tail lift is needed.
- Payment
- Card, PayPal, Apple Pay and Google Pay. 30-day invoice for businesses, associations and the public sector.
- Returns
- Private customers have a 30-day right of withdrawal. Businesses contact us before returning. Made-to-measure products are excluded.
- Complaints
- Report transport damage to us – we'll handle it with the carrier.
