New Decorative corner element for groove-groove L-units – product imageEnlarge
Item no. ST0201Brand: St Eriks

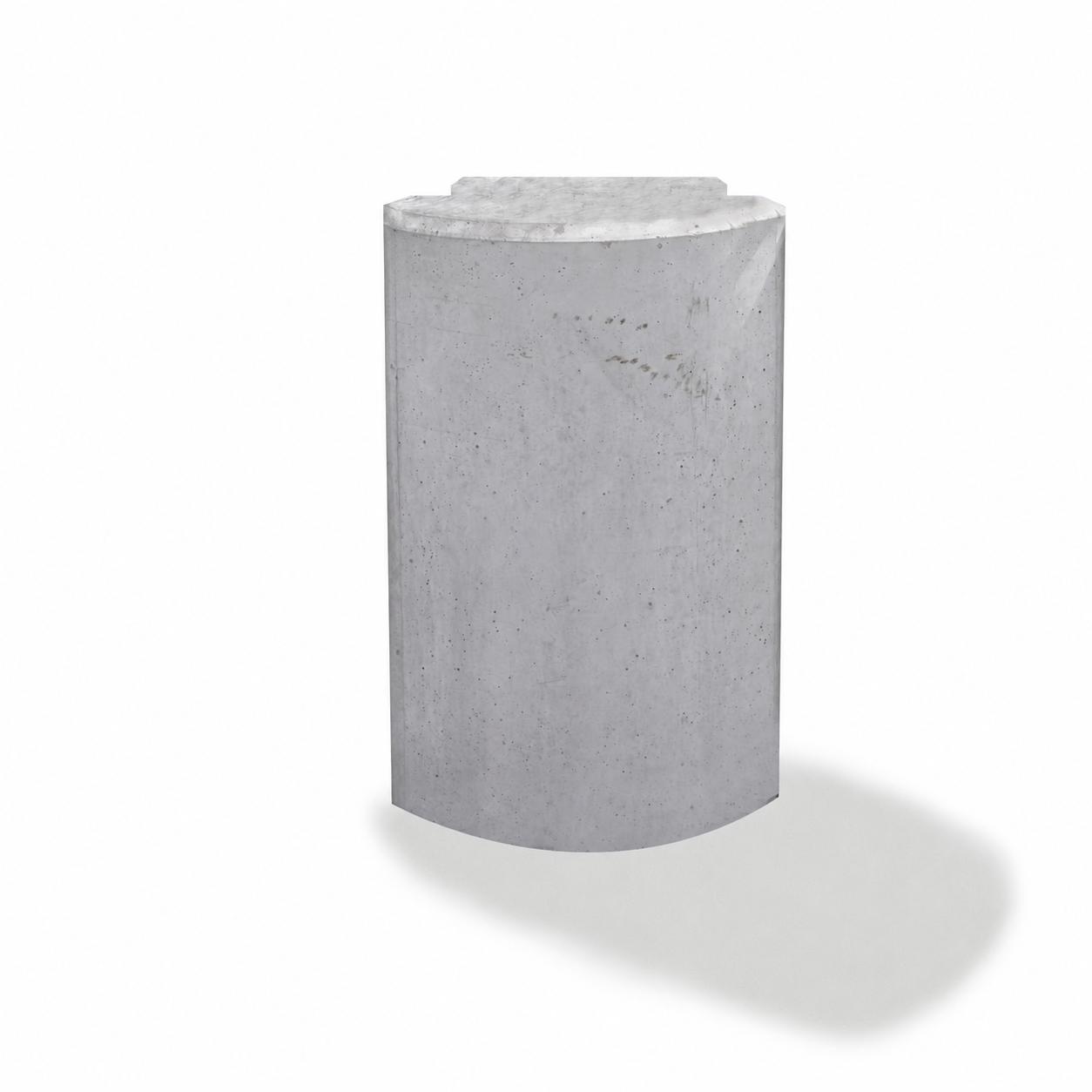

Decorative corner element for groove-groove L-units

  • For groove-groove L-units
  • Angle 90, 135, 155 or 180°
  • Height 600–2000 mm
Step 2 · Angle (Slope)
excl. VAT From£368
Delivery time: 6-9 business days Shipping calculated at checkout
Accessories and spare parts2 matching products View ↓
Invoice, 30 days CE-marked Free advice
Key facts
Height
600 mm, 800 mm, 1000 mm, 1200 mm, 1400 mm, 1600 mm, 1800 mm, 2000 mm
Angle (Slope)
90 °, 135 °, 155 °, 180 °
Design
Groove and groove
Material
Concrete
All technical data ↓

Not sure what fits? Call +46 10 153 90 50

Suitable for these environments

Description

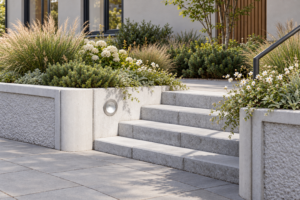

Decorative element for groove-groove L-units – a neat corner finish for your retaining wall

The decorative element from S:t Eriks covers the corner where two groove-groove L-units meet, giving the retaining wall a complete, tidy corner finish in parks, on terraces, by driveways and in residential areas. The element is a decorative corner element and should not be confused with a load-bearing corner element.

Features

  • Covers the corner between two groove-groove L-units
  • Four angles: 90, 135, 155 and 180°
  • Eight heights to match the L-units, 600–2000 mm
  • Precast concrete

Dimensions and design

The decorative element is available in heights of 600, 800, 1000, 1200, 1400, 1600, 1800 and 2000 mm and in angles of 90, 135, 155 and 180°. Choose the same height as the L-units in the wall. You select the height and angle in the steps above.

Material and durability

The element is cast in concrete. The Declaration of Performance and building product declaration for S:t Eriks retaining walls are available in the Documents and certificates tab.

Mounting

The decorative element is placed in the corner between the L-units in the groove-groove series. It does not replace a corner element and does not take up earth pressure. Handling instructions and the technical guide for retaining walls are available in the Documents and certificates tab.

Frequently asked questions

Is the decorative element a corner element?

No. It is a decorative corner element for groove-groove L-units and should not be confused with a load-bearing corner element.

Does it fit tongue-and-groove L-units?

No. The decorative element is made for the groove-groove series.

Which height should I choose?

Choose the same height as the L-units in the wall, 600–2000 mm.

Technical data
Height
600 mm, 800 mm, 1000 mm, 1200 mm, 1400 mm, 1600 mm, 1800 mm, 2000 mm
Angle (Slope)
90 °, 135 °, 155 °, 180 °
Design
Groove and groove
Material
Concrete
Item no.
ST0201
Accessories and spare parts2 pcs
Lifting chain for L-unitsItem no. 3414-100009
£1 200
Lifting clutch for L-unitsItem no. 3414-001525
£300
Documents and certificates6 files
Certifications
  • BastaThe Basta assessment criterion means that a product meets strict requirements for not containing substances of very high concern, based on current EU legislation and environmental standards.
  • ByggvarubedömningenThe "Recommended" assessment criterion from Byggvarubedömningen means the product is a preferred choice from an environmental and health perspective.
  • CECE marked. The product meets the essential health, safety and environmental requirements set out in EU legislation.
  • SundaHusAccording to the SundaHus assessment, the product is a sound choice from both an environmental and a health perspective.
Downloads
Product sheet, decorative element for groove-groove L-unitsPDF Declaration of Performance, retaining walls, S:t EriksPDF Building product declaration, retaining walls, S:t EriksPDF Handling instructions, retaining walls, S:t EriksPDF Foundations for blocks and walls, S:t EriksPDF Retaining walls – a technical guide, S:t EriksPDF
Delivery, payment and returns
Delivery time
6-9 business days
Shipping
Calculated at checkout from weight, volume and delivery address. Heavy and long products are shipped on a pallet.
Delivery
To the property line or gate with tracked shipping. Unloading is not included – let us know if a tail lift is needed.
Payment
Card, PayPal, Apple Pay and Google Pay. 30-day invoice for businesses, associations and the public sector.
Returns
Private customers have a 30-day right of withdrawal. Businesses contact us before returning. Made-to-measure products are excluded.
Complaints
Report transport damage to us – we'll handle it with the carrier.
