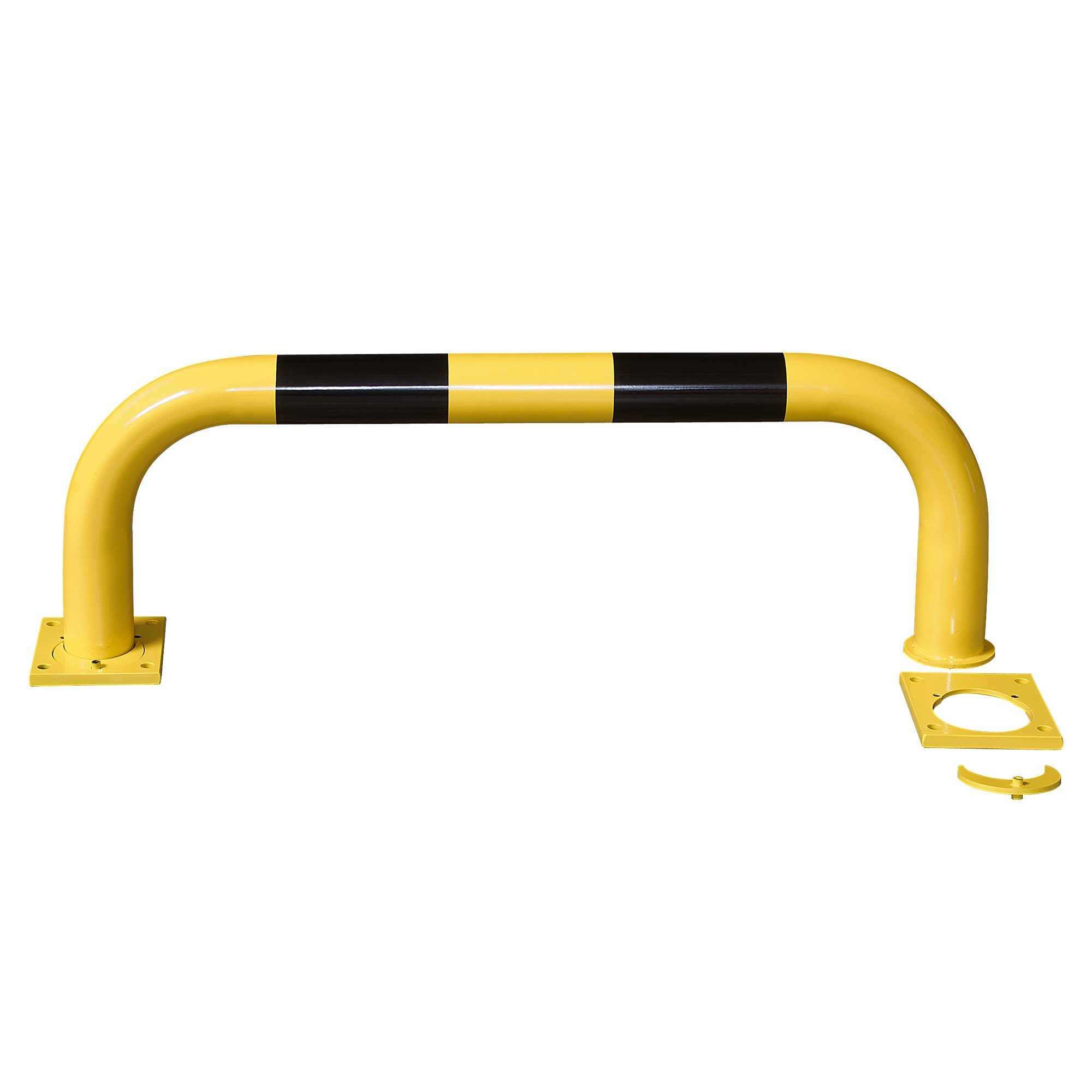

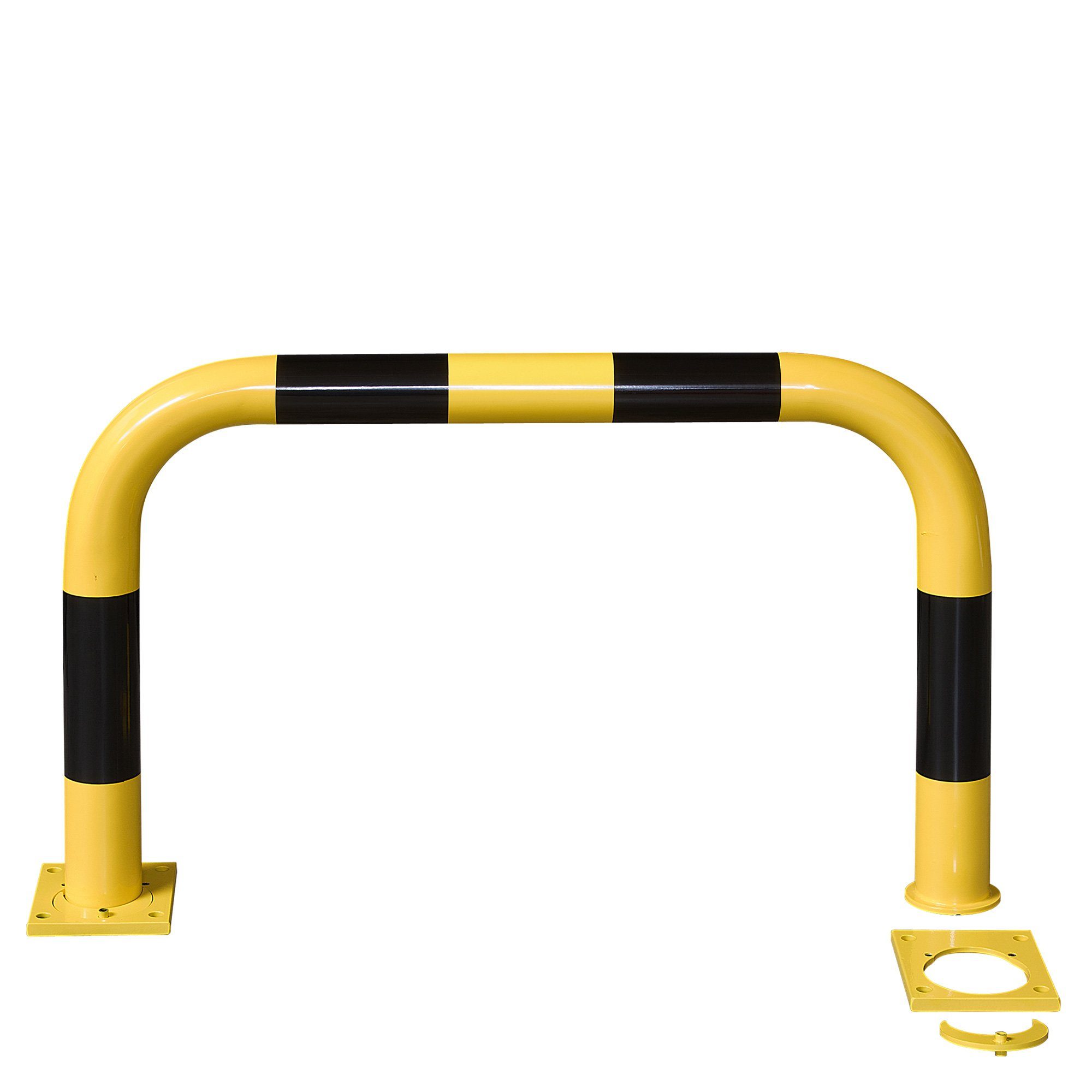

Removable Impact Protection Hoop Ø76mm

Use the Removable Impact Protection Hoop where access to facilities and machinery is required. These hoops feature a unique base plate that allows the hoop to be quickly removed and reinstalled.

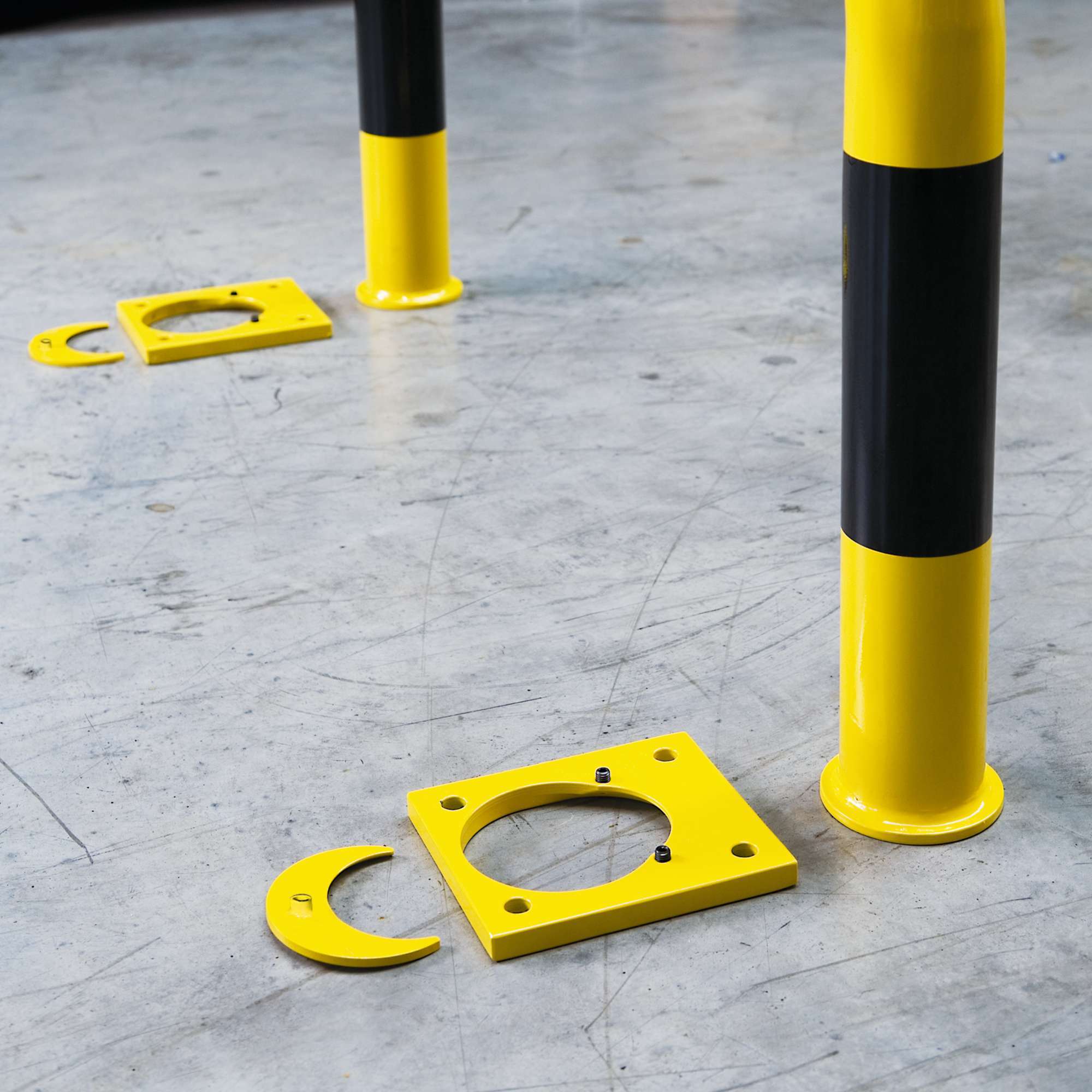

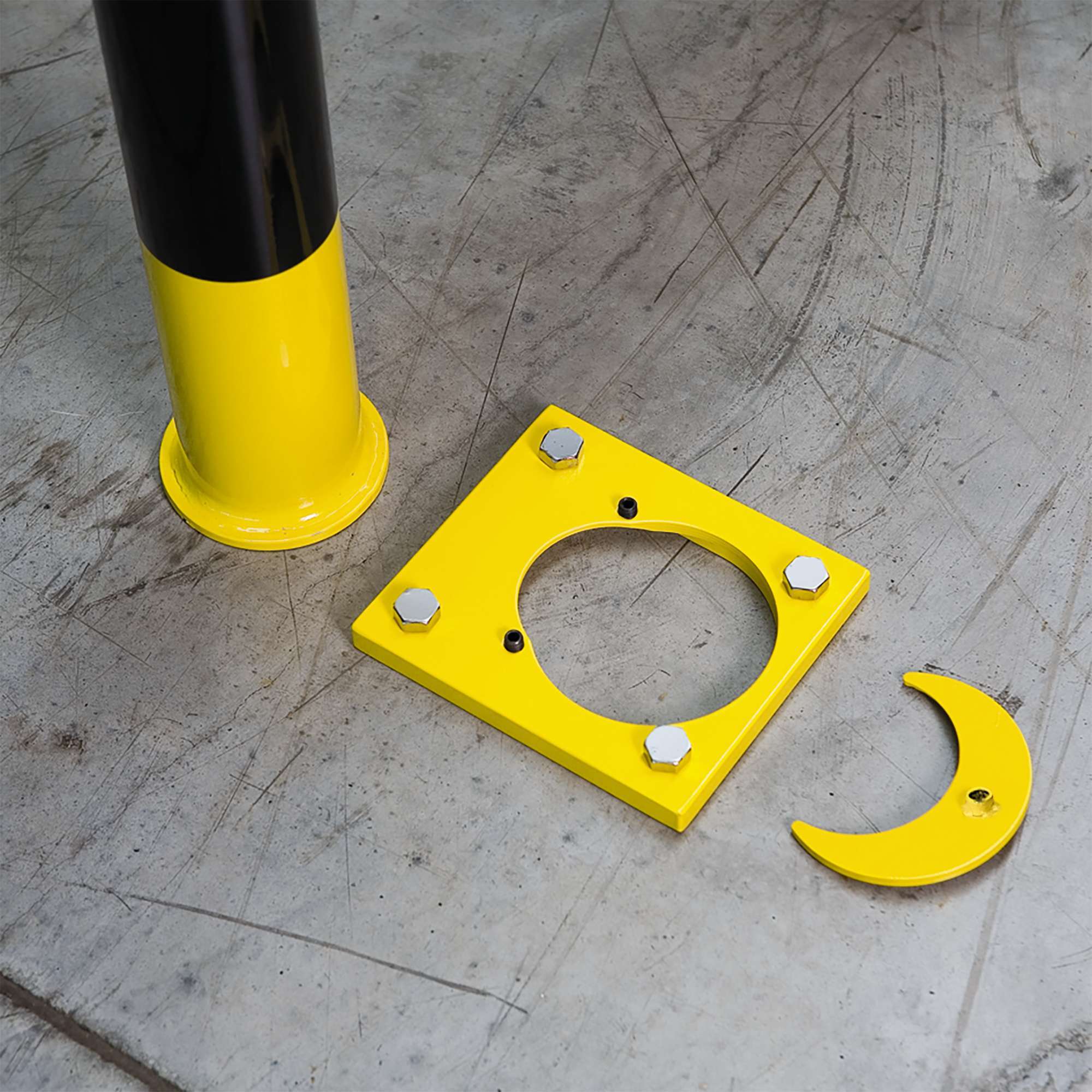

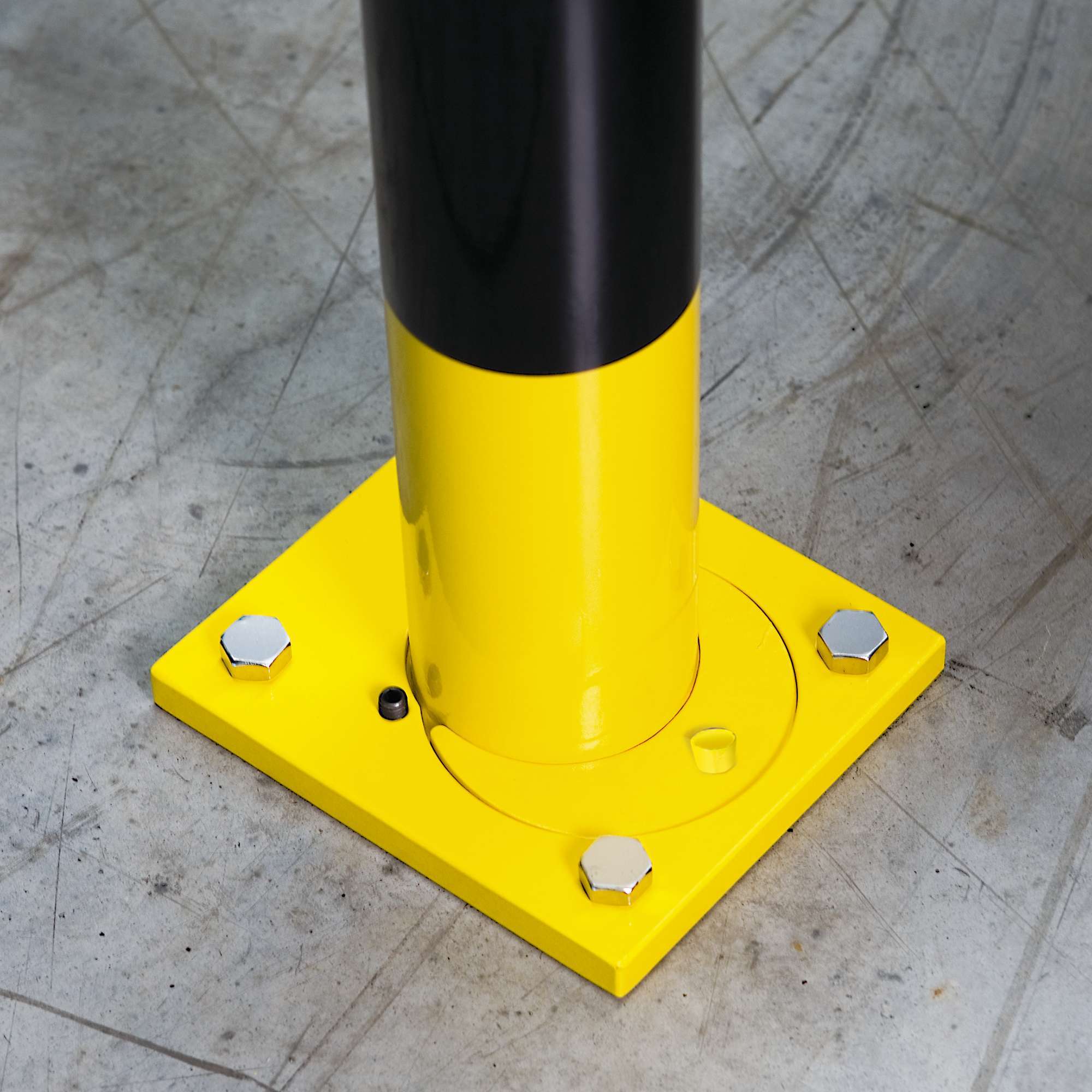

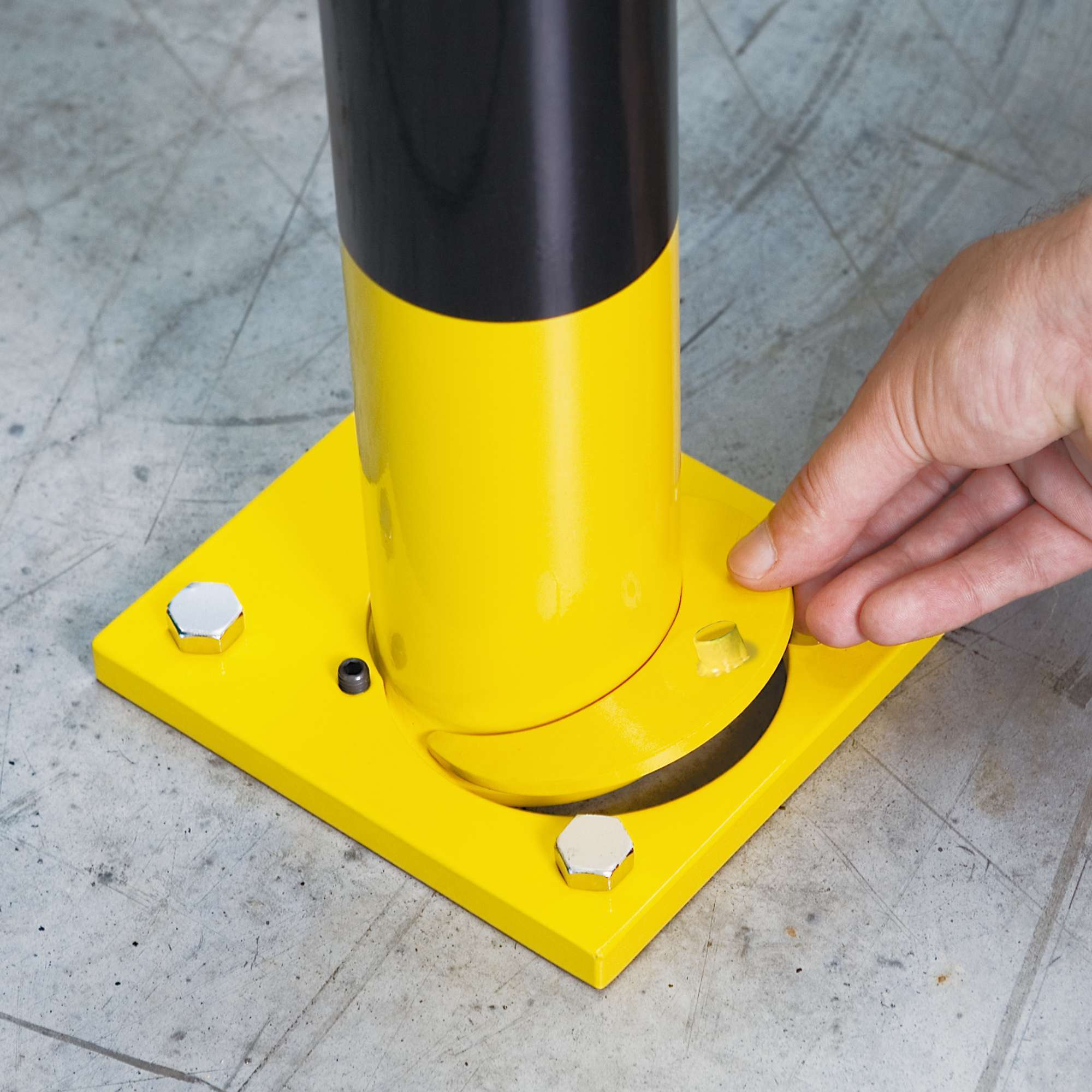

The Removable Impact Protection Hoop is easy to install: simply secure the anchor plates to the floor with anchor bolts. Place the legs of the hoop into the holes in the plates and slide the flanges under the edges, then secure with the supplied screws. Cover plates are included to reduce the ingress of dirt and debris.

• Quick and easy installation.
• Protect portable equipment and machinery.
• Eliminate time-consuming removal and reinstallation of conventional hoops.
• Use in areas with a high risk of damage.
• For indoor use only.
• 8 anchor bolts required (sold separately).

Specifications:

• Widths: 750 and 1,000 mm
• Heights: 350 and 600 mm
• Diameter: 76 mm x 3 mm wall thickness
• Anchor plates: 160 x 104 x 15 mm (4 pre-drilled mounting holes)

Finish: Powder-coated yellow with black bands
