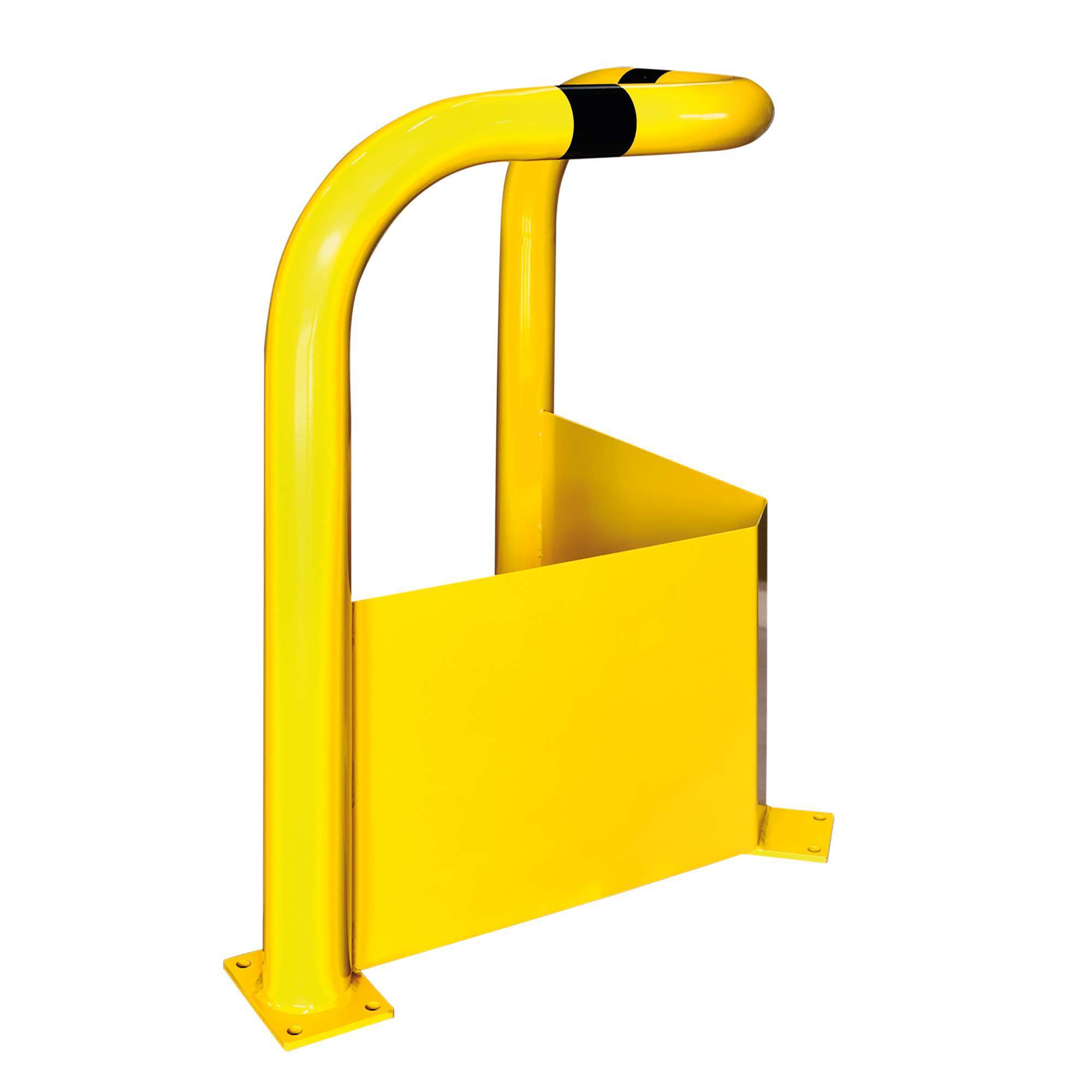

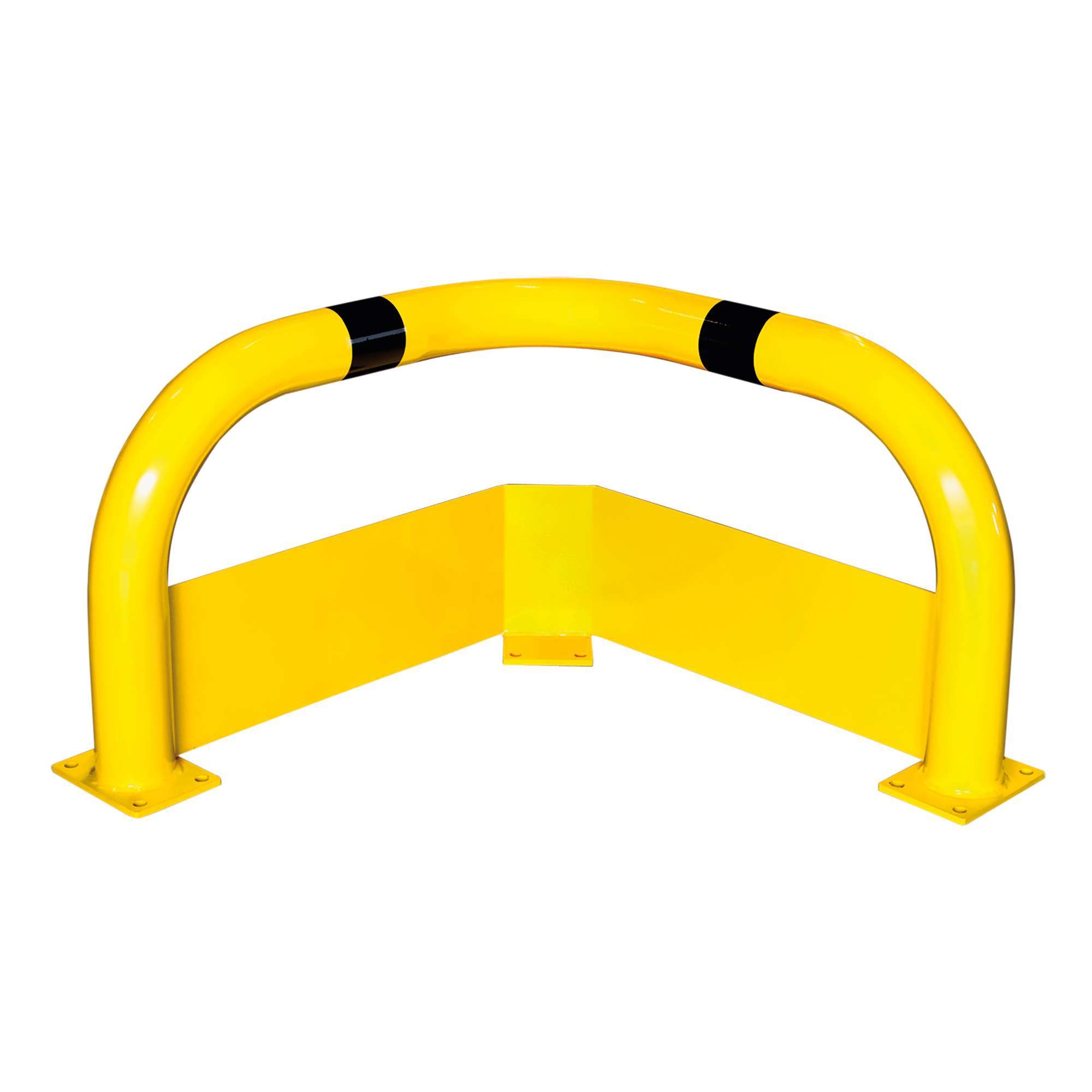

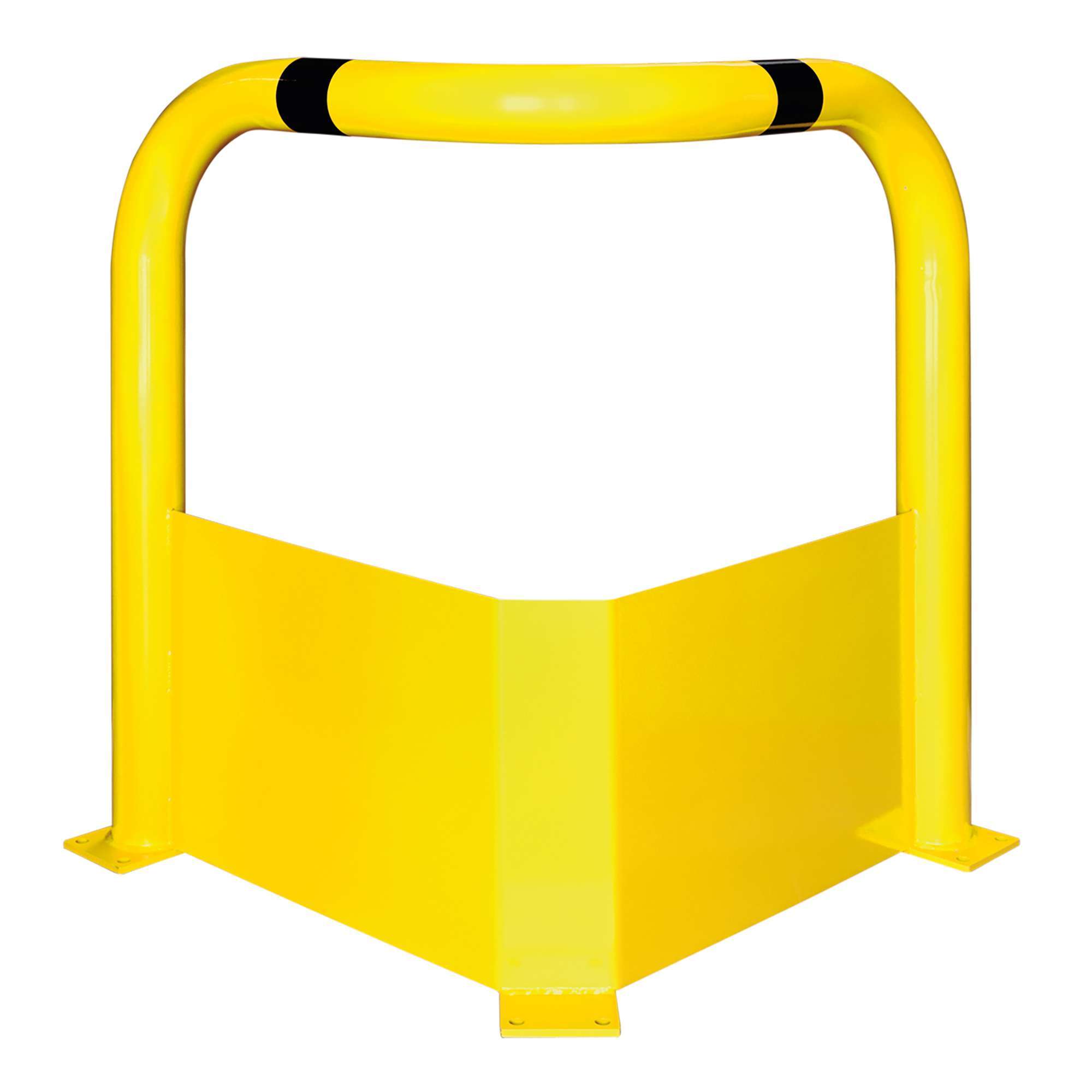

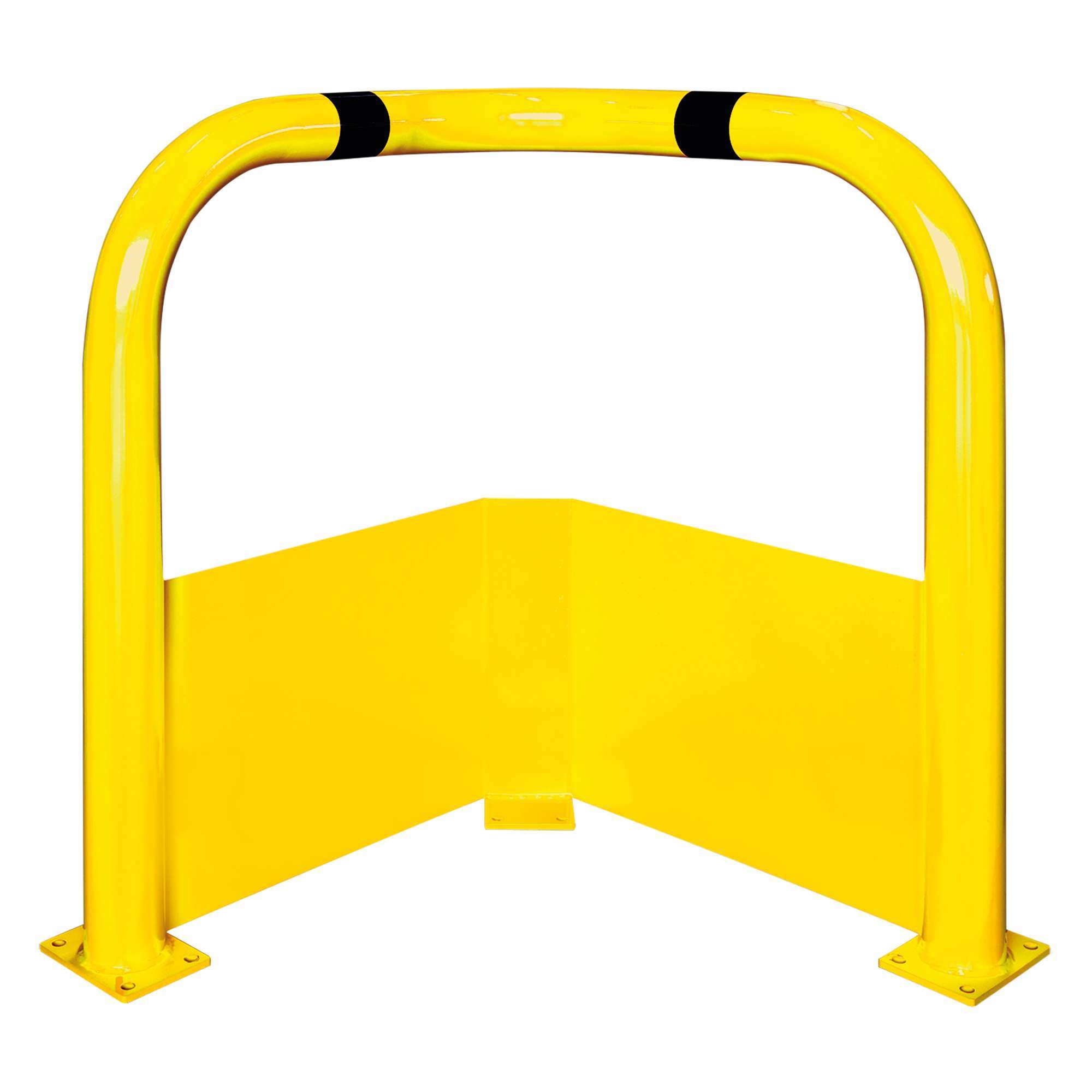

Impact Protection XL Corner Guard with Underrun Protection – Ø108mm

Impact Protection XL Corner Guard with Underrun Protection – Maximum protection against damage from heavy impacts.

Specially developed for areas with heavy forklift traffic. The Impact Protection XL Corner Guard with Underrun Protection provides extremely strong protection against damage to building structures and machinery, and complements our Impact Protection XL range. The steel underrun plate effectively stops forklifts from pushing past the barrier line.

Extremely strong: Made from high-quality, seamlessly bent 108mm steel tube with 3.6mm wall thickness

Maximum strength: 4mm underrun protection with a ‘Z’ bend to withstand extremely heavy impacts

TÜV tested according to DGUV 208-061: Tested and certified to current safety standards

Top quality – Made in Germany: Manufactured from high-quality steel

Finishes:

• For indoor use – Powder-coated yellow with black stripes
• For outdoor use – Hot-dip galvanized and powder-coated yellow with black stripes

Mounting:

Bolted down via base plates

In-ground mounting available on request

Dimensions:

Tube Diameter: 108mm Ø

Wall Thickness: 3.6mm

Heights: 600 and 1,200mm

Width: 900 x 900mm

Base Plate: 200 x 140 x 10mm

Mounting Holes: 18mm Ø

Underrun Plate: Height 250 or 500mm, Material Thickness 4mm
