Impact Protection Pedestrian Safety Railing – FLEXIBLE

FLEX Impact Protection System HYBRID offers the best of both worlds: a practical combination of the advantages of steel and plastic.

• For indoor and outdoor use
• Steel and plastic construction
• Exceptionally robust design
• Modular construction for custom applications
• Quick and easy installation
• TUV-tested to DGUV 108-007

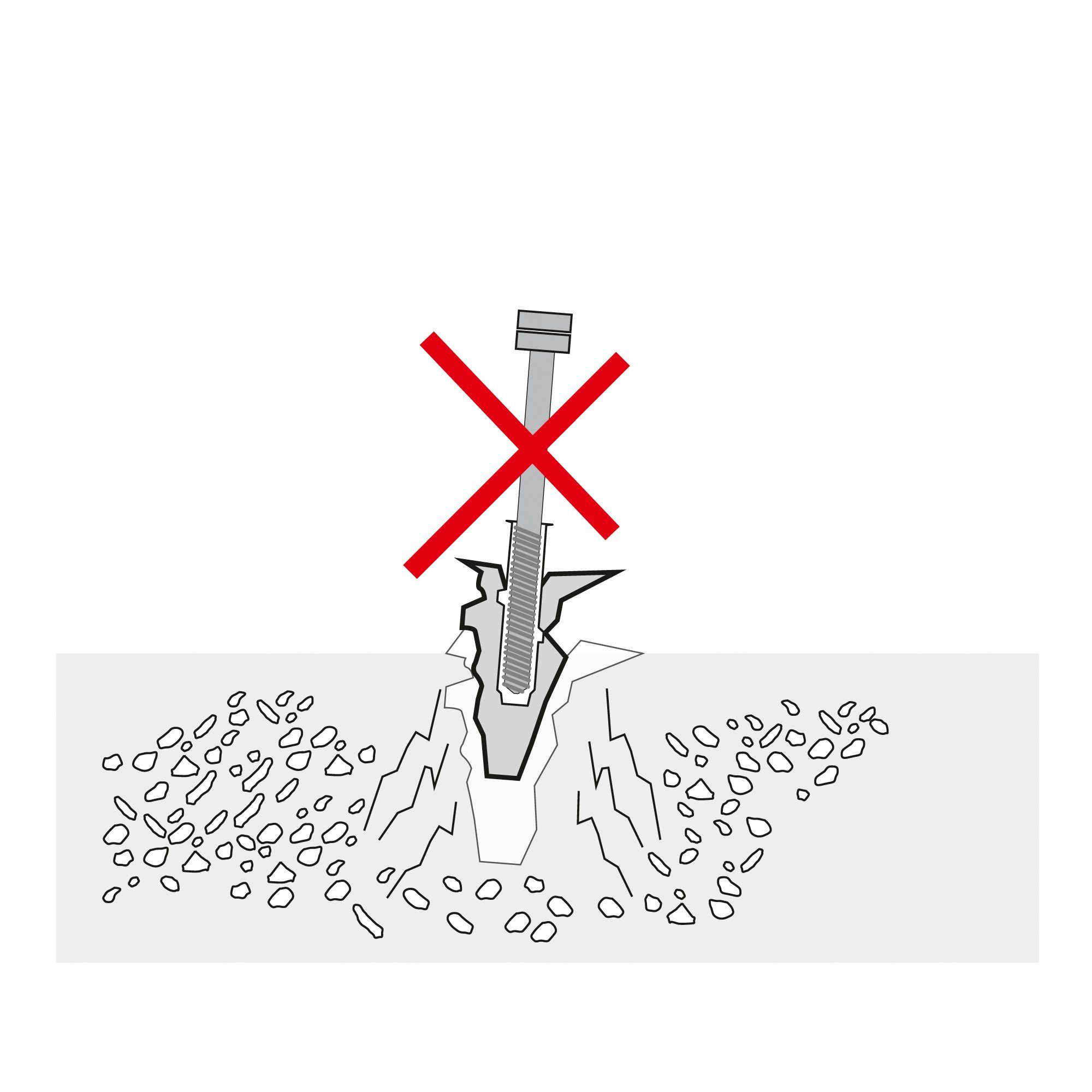

Most plastic impact protection systems require the posts to be secured with steel plates and welded bolts. In short, to provide the necessary stability, the posts are fitted internally with steel components.

Our solution: A hybrid barrier system that combines the advantages of steel and plastic, with flexible steel posts and equally flexible PP plastic rails.

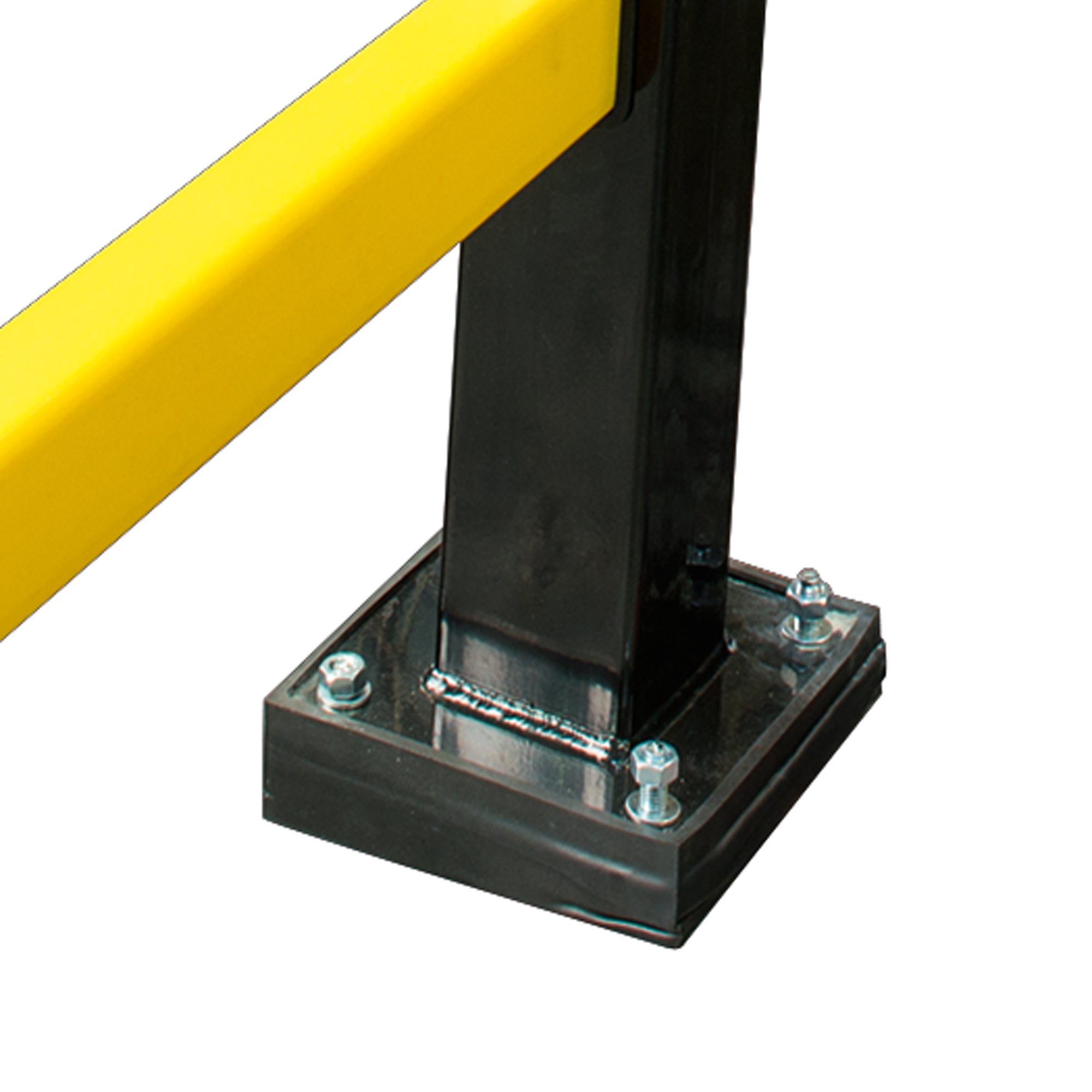

The posts are equipped with our patented PU cushions that allow the posts to flex to a maximum angle of 10° (approx. 17.5 cm), reducing the forces transferred through the post to the floor. The rails are made of a durable grade of polypropylene (PP) that is highly resistant to impact loads. The entire construction protects personnel, vehicles and property while reducing floor repair costs.

The result is a highly visible, robust black and yellow barrier system suitable for both indoor and outdoor installation.

Surface mounting only.

Applications:

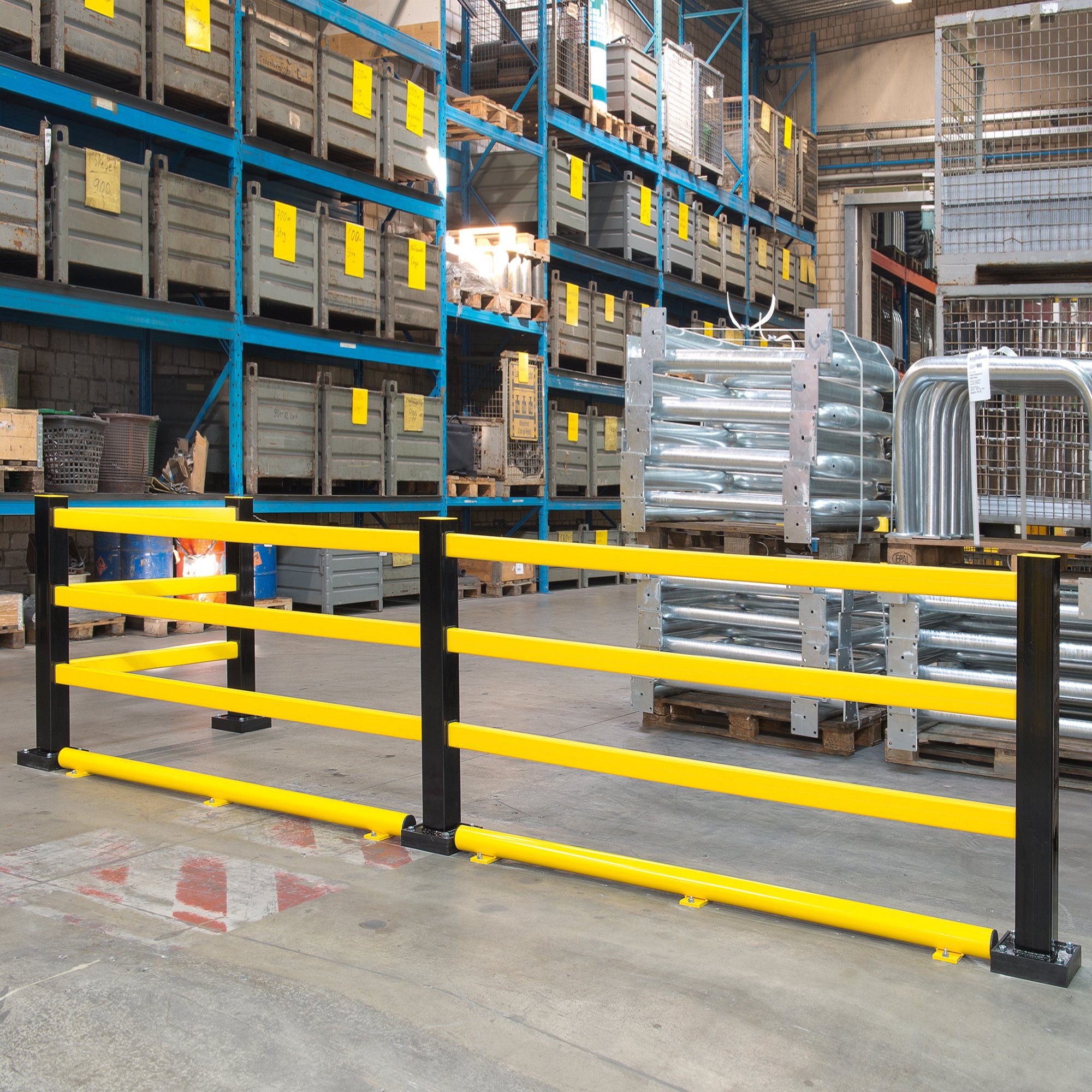

Separate traffic routes from pedestrians (forklift aisles/walkways); ideal for protecting work areas, equipment, machinery and facilities.

Specifications:

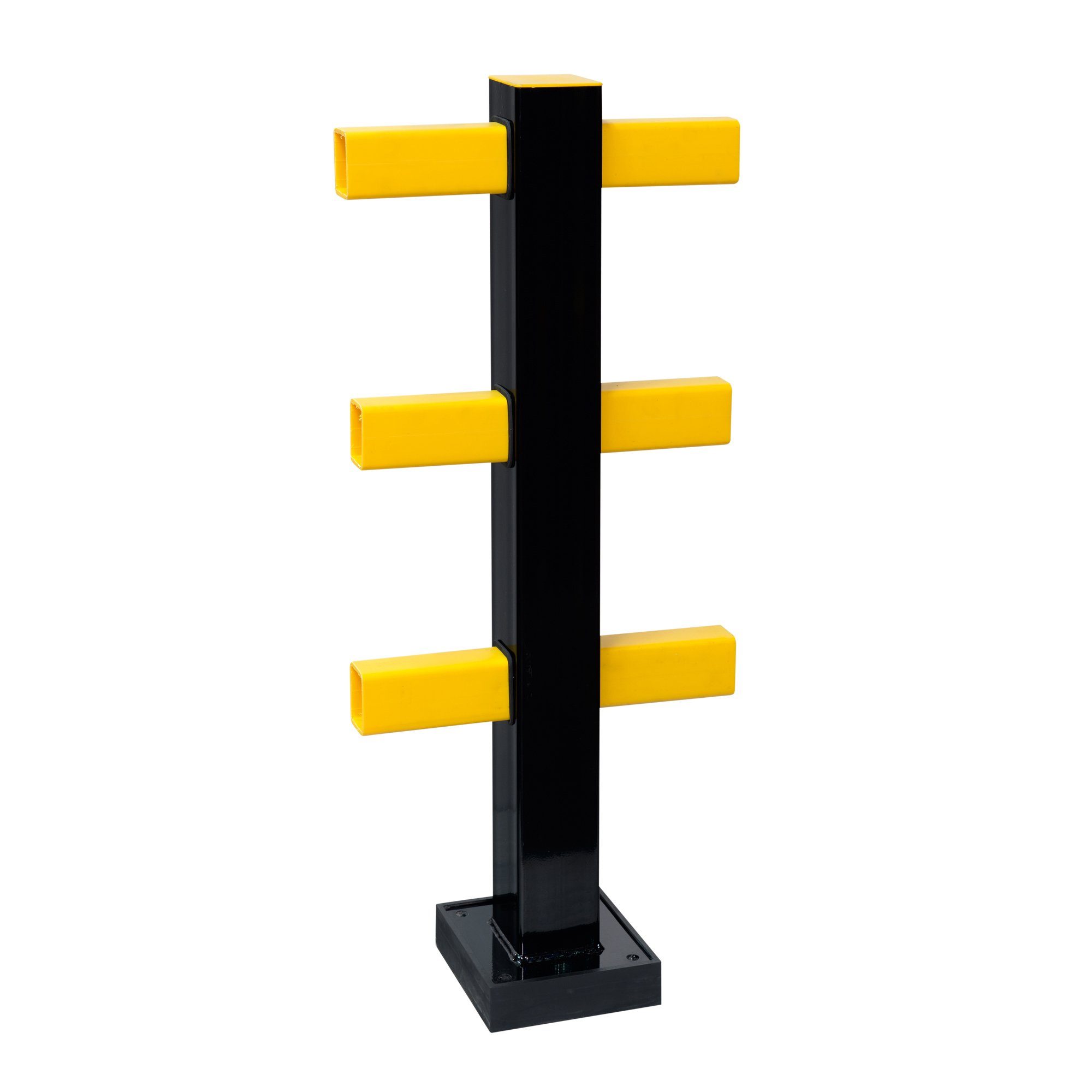

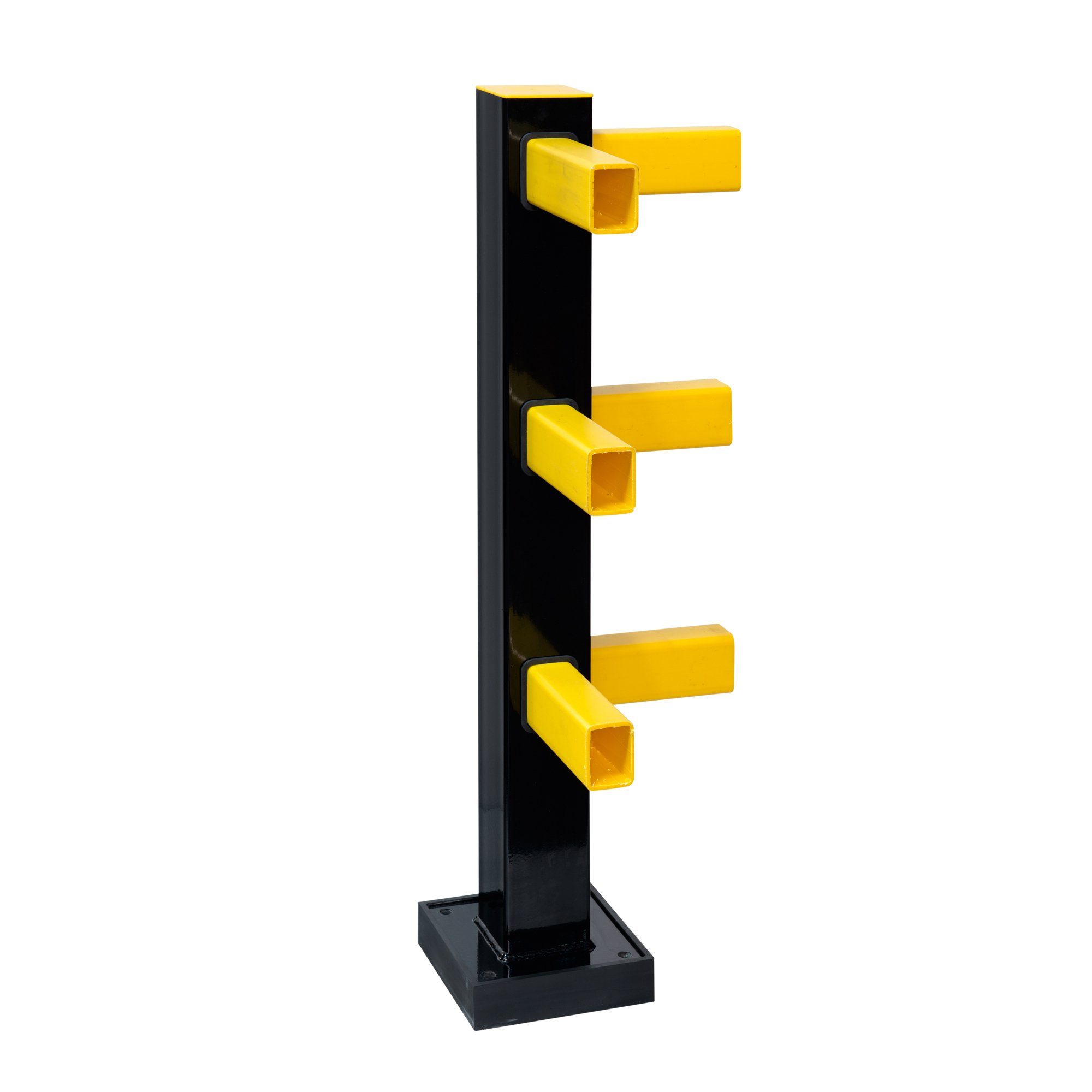

Posts

• Material: Steel
• Dimensions: 1,040 x 100 x 100mm
• Wall Thickness: 3mm
• Base plate: 200 x 200 x 10mm
• Finish: Indoor: Powder-coated – Outdoor: Hot-dip galvanized, powder-coated.
• Color: Black

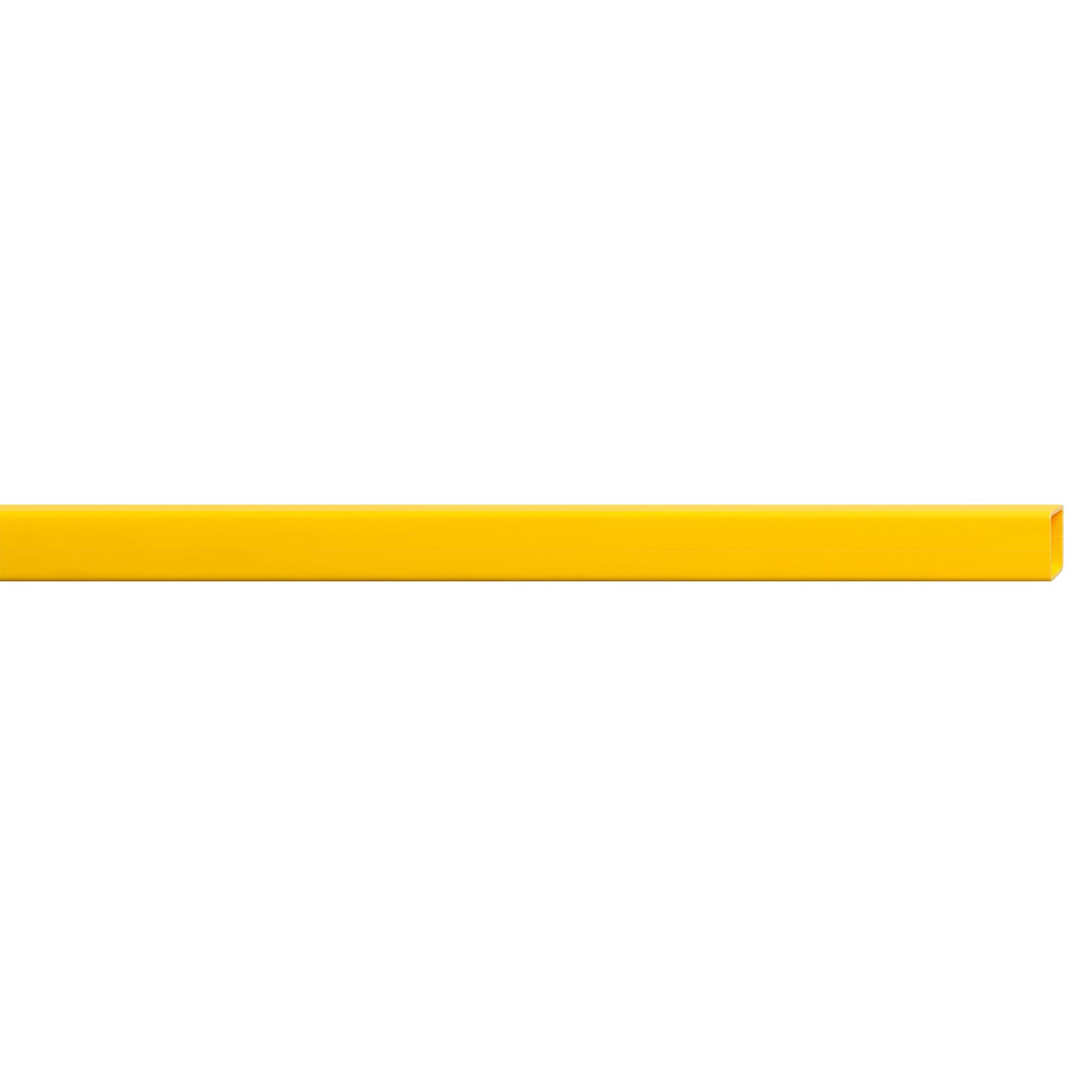

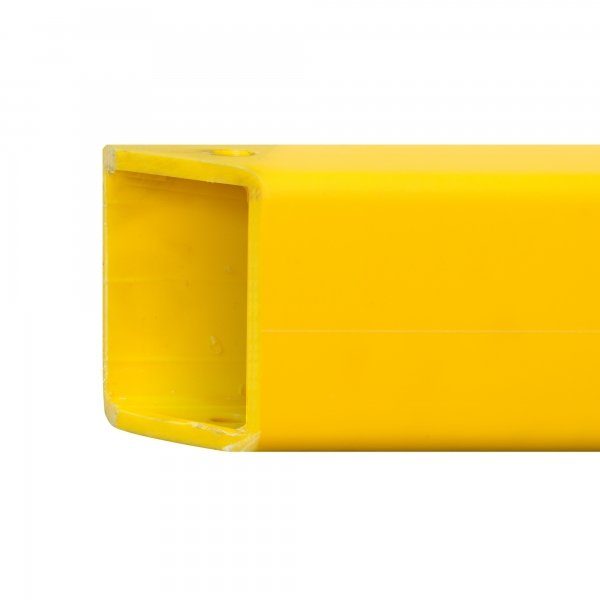

Rails

• Material: Polypropylene (PP)
• Dimensions: 74 x 52 x 5mm
• Lengths: 1,000, 1,500, 2,000 or 2,300mm
• Color: Yellow

Installed with 4 chemical anchors per post.

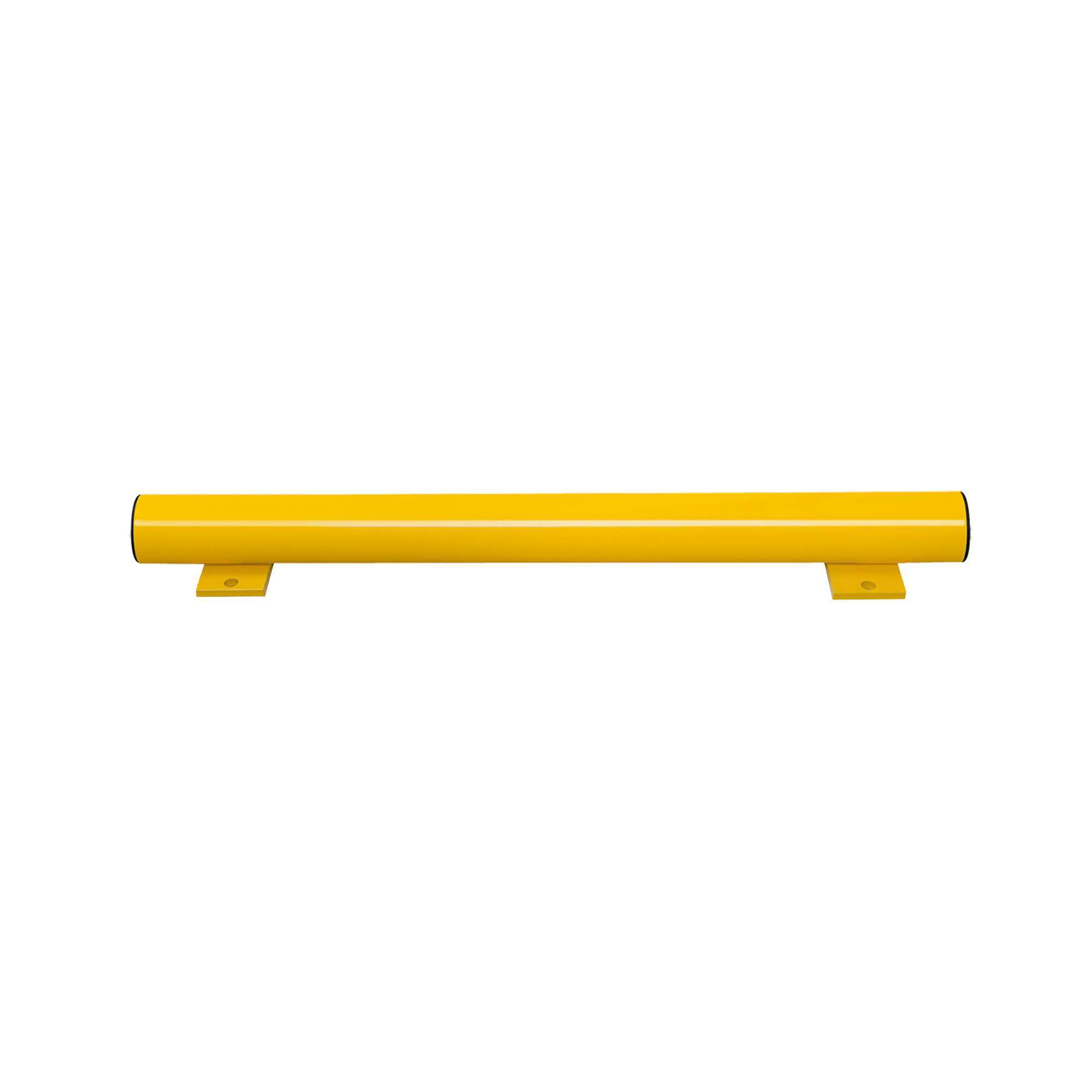

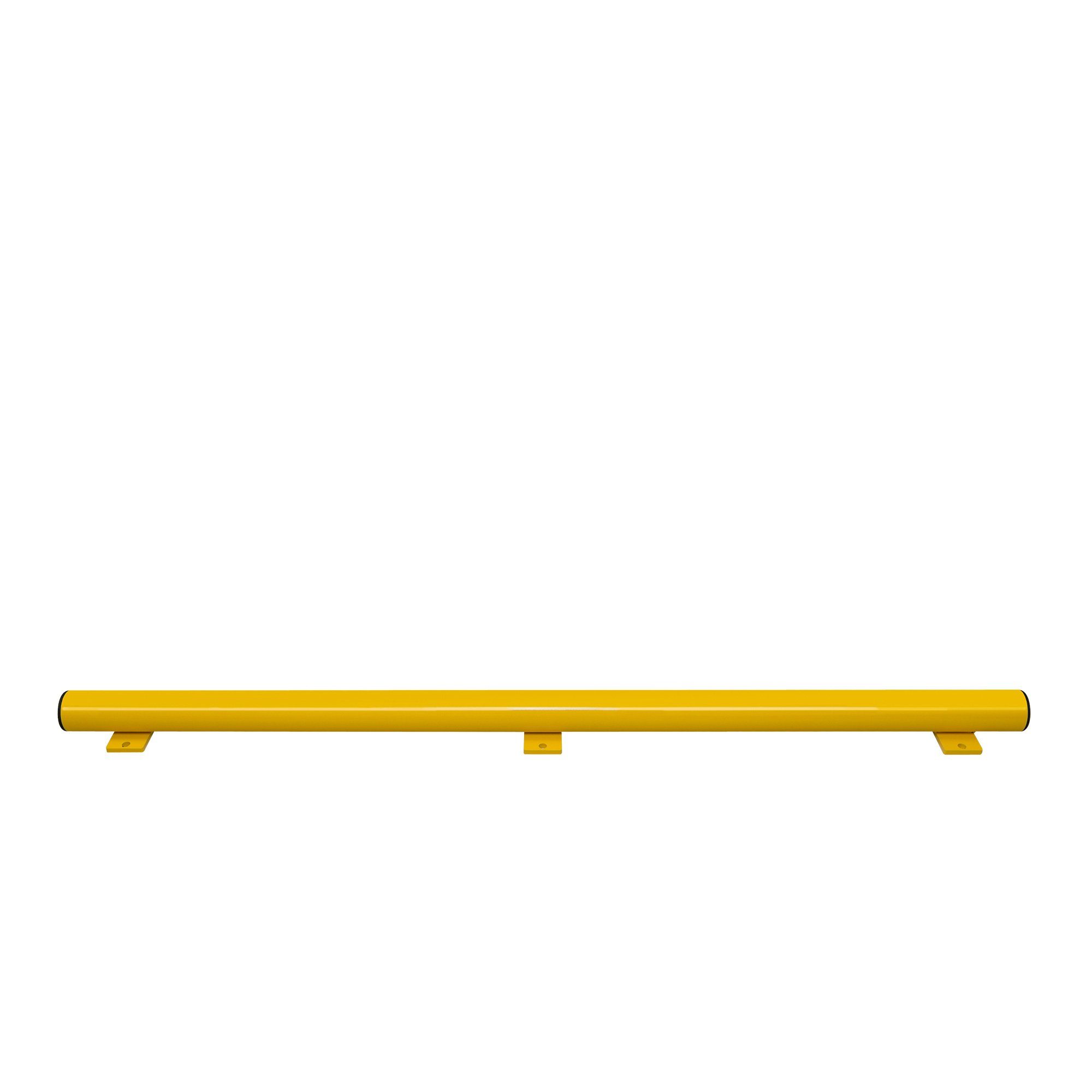

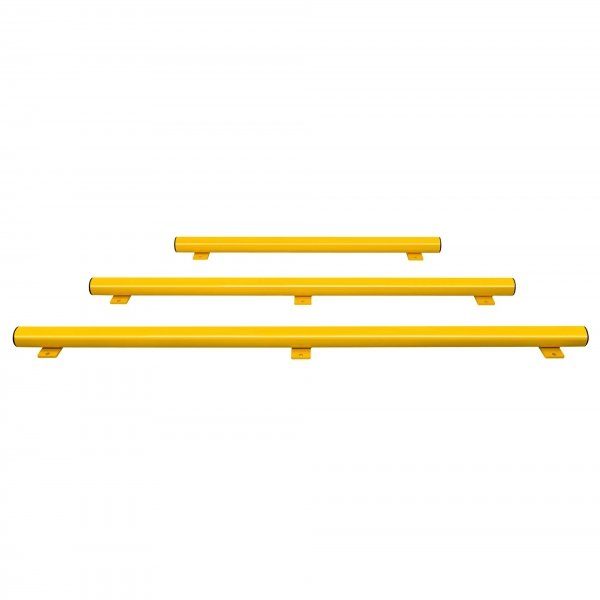

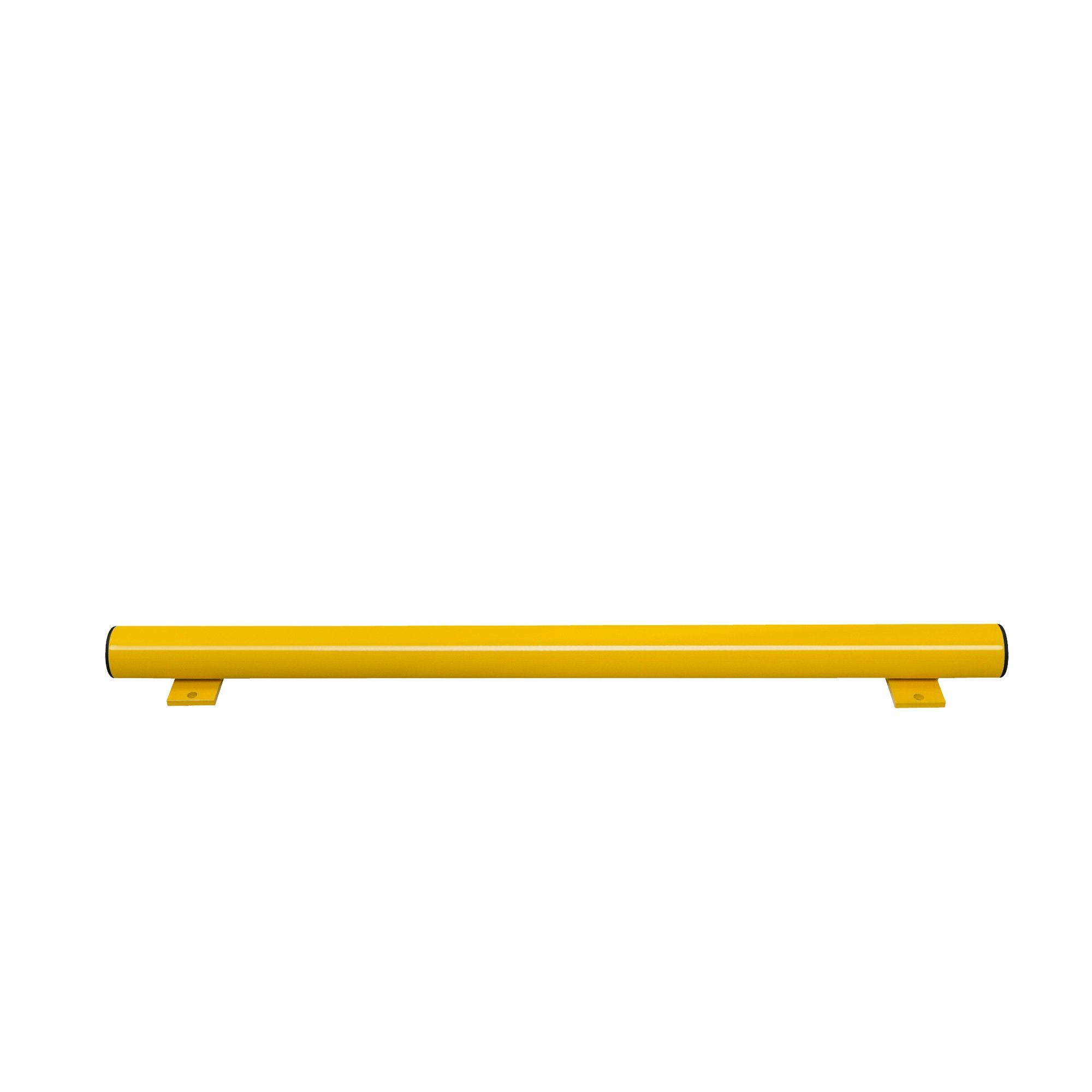

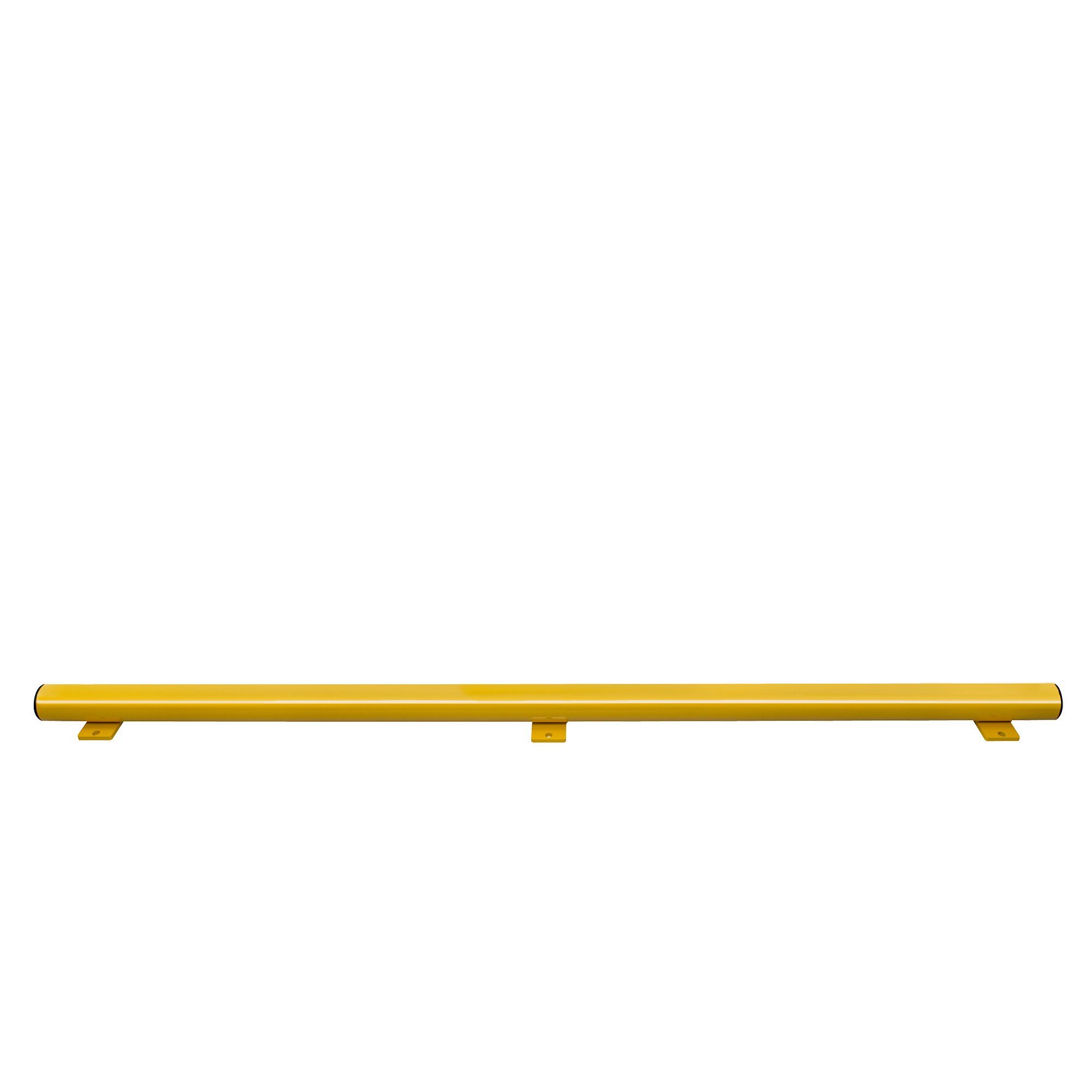

Optional Steel Under-Run Protection Bar

• 76mm Ø x 86mm high
• Base plates 130 x 70 x 40mm
• Color: Yellow
